DST Robot

DST Robot offers a wide range of cartesian systems, desktop robots, scara robots and edutainment robots. Affordable and reliable systems. An established Korean company since 1998, we hope to be a valuable partner in providing robotic integration to any industries to support their learning and manufacturing needs.

DST Robot, Korea, company overview

Since the foundation in 1999, DST Robot always strives to provide customers with the best solution under the vision ”Providing a convenient robot service to lead the age of robot convergence”.

Since the foundation, DST Robot provides a small size of handling and transfer robots that are suitable for an industrial field based on the accumulated robot development and application as well as developing an excellent robotic system business through intensive R&D and human investment.  Through intensive R&D and human investment, we are developing excellent robotic application systems.

And in the in service field of robots , we are pushing forward the edutainment and information service robot business, through commercialization for Smart Servo, Small Humanoid Robots, and Intelligent Pet Robots.

Through a combination of the South Korean and Chinese markets, DST Robot will develop to be a leading company into the robot fusion era and competitive brands in the global market, that the Korean and Chinese markets lead.  We, at DST Robot, will regard customer trust as the best value and continue to achieve higher customer satisfaction through constant innovation for industrial competitiveness.

DST Robot will consistantly try to offer the best robot products and services to its customers. Sincerely

Please click link for more product information: http://www.dongburobot.com/



Scara Robot
DSA-L

DSA series (SCARA) provides various model range from 250mm to 400mm in the arm length and up to 3kg in maximun payload.

  • Compact and smart design
  • Flexible design and space in the system
  • Pursuing simplicity and ease
  • 3D arc/pass motions



Scara Robot
DSA-S

DSA series (SCARA) provides various model range from 600mm to 1000mm in the arm length and up to 20kg in maximun payload.

  • Compact and smart design
  • Flexible design and space in the system
  • Pursuing simplicity and ease
  • 3D arc/pass motions

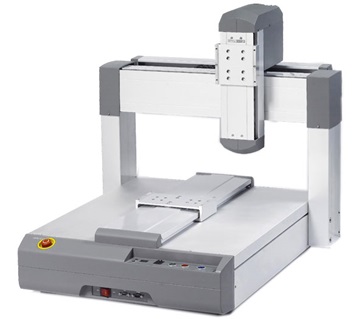

Desktop Robot
DTR-S

DTR-S series is designed to combine high precision and accurate positioning functions into compact unit with high rigid structure.
Various models with servo motor achieve the best performance.

  • AC servo motor (Power : max. 100w)
  • X,Y,Z aixs are Ball screw (F15, Lead 10mm)
  • Z axis has a brake motor
  • Positioning repeatability +/-0.01mm

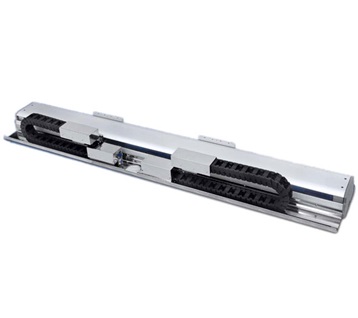

Linear Robot
DLM

DLM series(Linear motor) provide the solution of the demand for higher speed, precision, enhanced quality and performance.

  • High acceleration - The max. acceleration of 2G contributes to save the cycle time
  • High accuracy - The positioning accuracy is +/- 10 µm per 300mm
  • High speed - The max. is 2m/s.
  • Max. 5000mm stroke
  • Multi movers - 2 or more movers are on a single actuator and can be operated independently

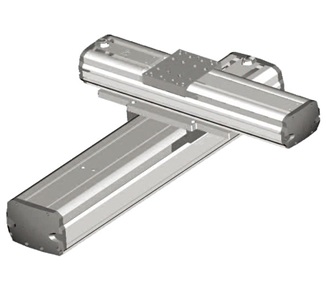

Cartesian Robot Combination
MRB-A1

Right angle robot configuration is the combined model made for the convenience of users according to the rectangle coordinates robot’s work section.

A1 Model is 2axis combined configuration and its application is Palletizing , Adhesive, Transfer, Coveyor, Dispensing,Screw tightening, Cutting, vision inspection, Sealing, so on.

  • A wide operation range
    - 100~2,000mm
  • Available for high load transfer or high speed operation
    - 170Kg, 2.5m/s
  • Excellent location decision ability suitable for high precision transfer
    - The degree of precision for repeat locus : ±0.02mm (Option ±0.005mm)

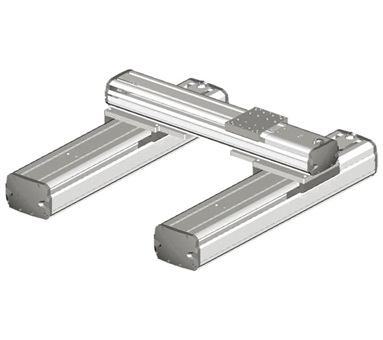

CartesianRobot Combination
MRB-A2

Right angle robot configuration is the combined model made for the convenience of users according to the rectangle coordinates robot’s work section.

A2 Model is 3axis combined configuration and its application is Palletizing , Adhesive, Transfer, Coveyor, Dispensing,Screw tightening, Cutting, vision inspection, Sealing, so on.

  • A wide operation range
    - 100~2,000mm
  • Available for high load transfer or high speed operation
    - 170Kg, 2.5m/s
  • Excellent location decision ability suitable for high precision transfer
    - The degree of precision for repeat locus : ±0.02mm (Option ±0.005mm)

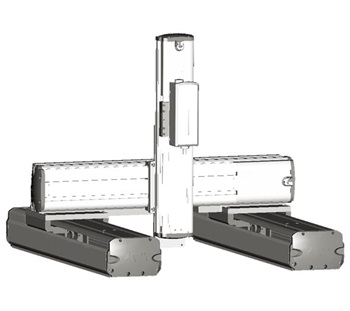

CartesianRobot Combination
MRB-C4

Right angle robot configuration is the combined model made for the convenience of users according to the rectangle coordinates robot’s work section.

C4 Model is 5axis combined configuration and its application is Palletizing , Adhesive, Transfer, Coveyor, Dispensing,Screw tightening, Cutting, vision inspection, Sealing, so on.

  • A wide operation range
    - 100~2,000mm
  • Available for high load transfer or high speed operation
    - 170Kg, 2.5m/s
  • Excellent location decision ability suitable for high precision transfer
    - The degree of precision for repeat locus : ±0.02mm (Option ±0.005mm)

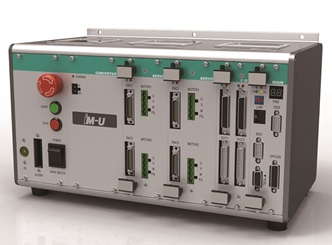

iM-S series is characterized by high speed, accuracy and  motion stability because it adopts high performance of a digital amplifier which is controlled by 16 & 32 bit DSP. It is designed to control from 2-axis robot to 8-axis robot or 8 single axes robots at once.

  • Cost effective All-in-One fuctions
    : Combined functions of motion control, servo drive and  PLC function into a compact unit
  • Multi axes control
    : More oveer 2 axes of DRM, DTR, DSM and DLM series robots at the same time.
  • Various options and extensive usage
    : Touch screen, CCD camera, magnetic sensor, photo sensor, solenoid, MPG etc. Max. 8 axes extension and optional network (CC-Link, ProfiBus)

SmartWorkStudio

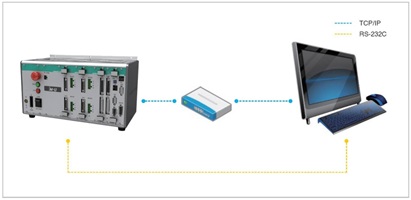

  • - Program that can control motion controller device by using motion controller device and TCP/IP socket communication or Serial port communication
  • - The program basically provides the edit and build function available for developing the motion control program.
  • - Available for checking for the compile errors
  • - Available for real time device checking
  • - The program that user makes can be uploaded to the device and operated and it provides the function that shows the results in various conditions.
